Precise edge winding on the turret winder

How does an automatic winder change work on a turret winder?

On a turret winder following a film extrusion line, in our case the film is cut lengthwise onto several panels and wound up. When the reel is full, an automatic reel change takes place. During a winding change, the film must continue to run continuously and the next film winding must be started cleanly and without creases.

Why does a plastic film telescope during winding?

Especially during the winder change, the film may run, this is called telescoping. There are several reasons for this, such as uneven web tensions, high web speeds, guide rolls that are not aligned parallel, or electrostatic repulsion effects. Especially with thin and smooth films, these effects are intensified. In our case, several blanks are wound on one reel.

Our solution

By means of a non-contact charging bar, the film is charged in a targeted manner so that attraction effects of each individual film layer are created on the winding.

For the detailed solution description of this application or a consultation on your application problem, click here:

Contact us

Which Eltex components are used?

The following Eltex products have been installed and tested on site by our experts. If you would like to learn more or have any questions, please do not hesitate to contact us.

POWER CHARGER

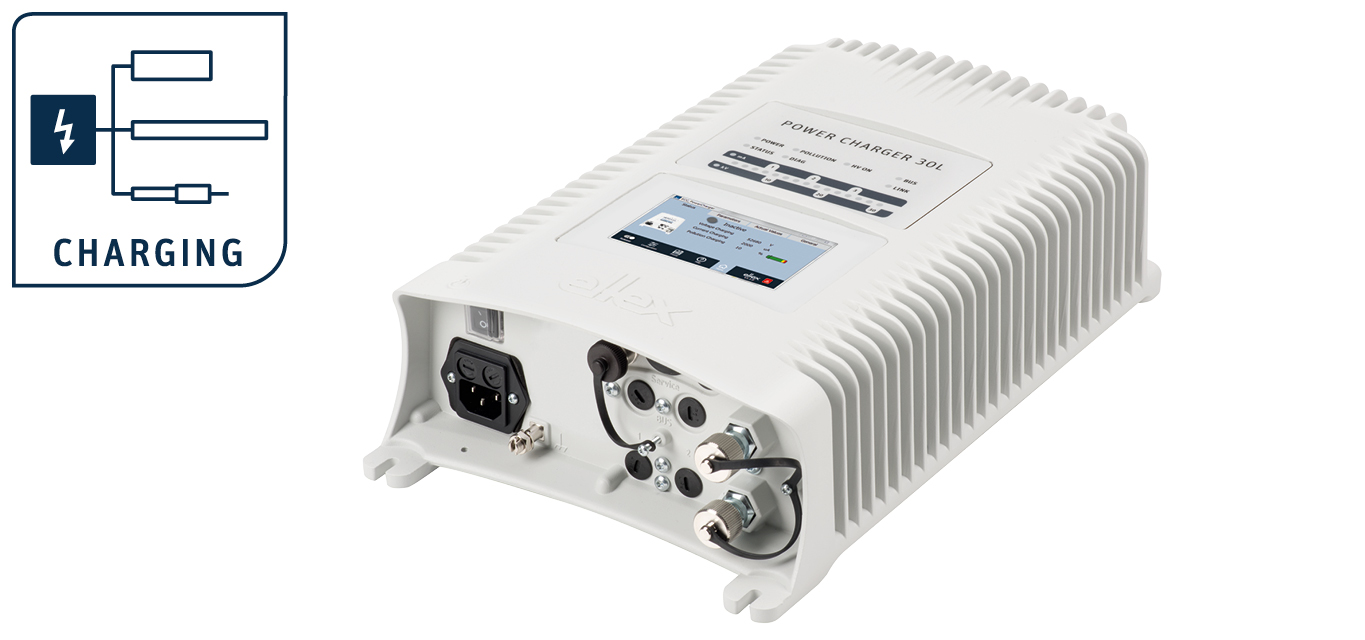

The new POWER CHARGER units cover various performance stages and charging applications. They can be operated either with a supply voltage of 24 V DC or a line voltage in the range of 85 V – 264 V AC. The output voltage is 75 or 150 watts. A membrane keyboard or an optionally available, integrated touch panel is used to control the generators. POWER CHARGER units can be operated using analog operation or via digital fieldbus interfaces. At the market launch, a control system that uses CANopen and ModbusTCP are available. The modular system is only prepared for integrating other fieldbus standards.

Weiterlesen

R130

Heavy-duty precision bar for supply voltages up to 60 kV. The charge and field distribution have been substantially improved by the optimized arrangement of the individual bars. Separate current-limited tips prevent an increase in air ionization and high-energy brush discharges.
